Joystick Switch Box

A simple joystick switcher for the c64 or ever any Atari supproted joystick system.

Schematic: JoystickSwitchBox.pdf
STL Files: JoystickSwitcherSTL.zip

---------------------------------------------------------------------------------

These are all the components that are 3D printed.

Head.stl - Where the 9 pin D connector goes and LEDs.
Switch Latch.stl - A linking piece between the latching switch and button.
Button.stl - The button piece that fits on to the Switch Latch.
Case.stl - The main case to holds the switch.
Lid.stl - A lid to close the case.

---------------------------------------------------------------------------------

The 6PDT Push Latching Switch is fitted. The case is made for this switch so the one may buy may differ.

---------------------------------------------------------------------------------

The LEDs are glued in place. This is to indicate witch port the joystick is switch to.

---------------------------------------------------------------------------------

I used D-sub Female connector for ribbon cable connection. So match easier the soldering 9 wires in. The cables are simply soldering two the switch then to the D-sub on the frount. As to the schematic.

---------------------------------------------------------------------------------

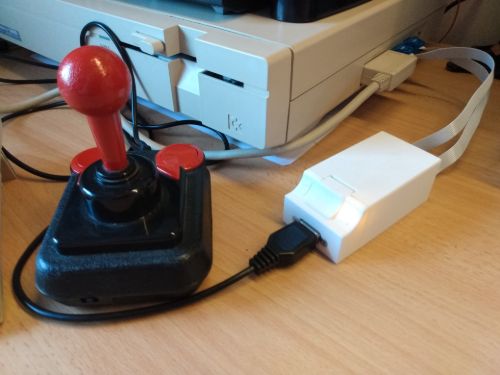

All Done and works well. Sorry there are a lack of details, but it was a wile a go when I did this.
Wish I took more Pictures.
